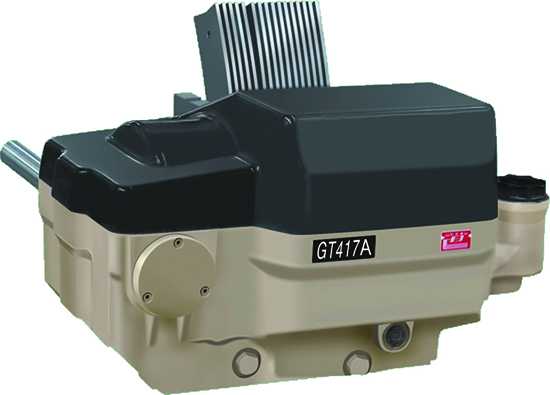

GT417A旋轉式高速電子多臂裝置

·用途：適用于各類高檔高速噴水、噴氣織機

·控制：電子式

·最大循環緯數：12800緯

·安裝：上、下置式（左、右手車）

·規格：16片；12mm間距

·適用織機筘幅：1650-4600mm

TYPE GT417A HIGH-SPEED ELECTRONICALLY CONTROLLED ROTARY DOBBY

·Features:Type GT417A High-speed Electronically Controlled Rotary Dobby

·Use: This device is applicable to various kind of high performance air-jet and water-jet looms

·Control method: electronically

·Weft storage: 12800

·Mounting: in high and low position (left and right side) Lifting ·units: 16

·Pitch: 12mm

Suitable reed width: 1650~4600mm

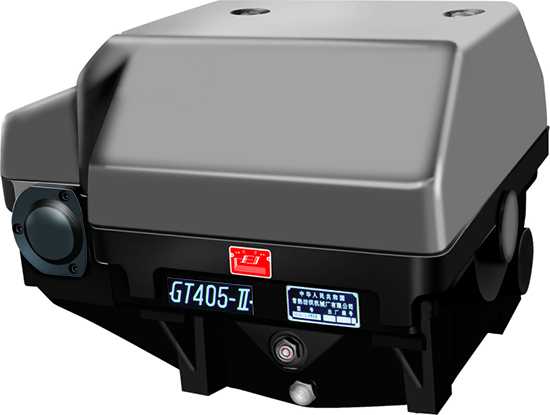

GT405-Ⅱ旋轉式電子多臂裝置

·用途：適用于各類高性能劍桿織機

·控制：與織機同步之獨立控制裝置、電子式

·存儲容量：12800緯

·安裝：下置式（左、右手車）

·規格：20片；12mm間距

·適用織機筘幅：1650-4600mm

Type GT405-Ⅱ Rotary Elect ronic Dobby

·Use: This device is applicable to various kind of high-performance rapier looms

·Control method:  The electronically inde-pendent controlling device synchronizing with the looms

·Weft storage: 12800

·Mounting: In low position (Left and right side)·

Lifting units: 20

·Pitch: 12mm

·Suitable reed width: 1650-4600 mm

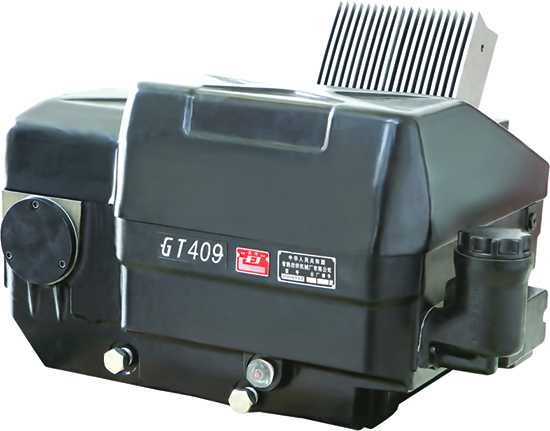

GT409旋轉式高速電子多臂裝置

·用途：適用于各類高檔高速劍桿織機

·控制：電子式·最大循環緯數：12800緯

·安裝：下置式（左、右手車）

·規格：16、20、24片；12mm間距

·適用織機筘幅：1650～4600mm

Type GT409 Highspeed Electronically Controlled Rotary Dobby

·Use:Suitable for various kind of advanced rapier looms

·Control method:electronic

·Endless wefts:12800

·Mount method:in low position(left and right side)

·Pitch:12mm

·Lifting units:16、20、24

·Suitable reed width:1650～4600mm

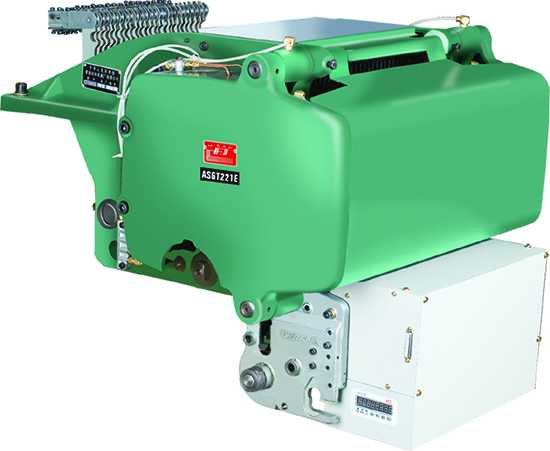

ASGT221E消極式電子多臂裝置

·用途：適用于各類中低檔、中速劍桿織機

·控制：電子式

·安裝：上置式（左、右手車）

·規格：20-24片；12mm間距

·適用織機筘幅：1400-2300mm

·最大循環緯數：64000緯

·附加功能：選色、簡易送經、停送停卷等。

Type ASGT221E Negative Electronic Dobby

·Use: This device is applicable to various kind of low and middle level

.middle speed rapier looms

·Control method: Electronic formula

·Mounting: In high position and for left and right side

·Lifting units: 20、24

·Pitch: 12mm

·Suitable reed width:1400-2300mm

·Endless wefts: 64000

·Other functions: color-selecting,simple warp let-off and stop letting-off and taking up etc.

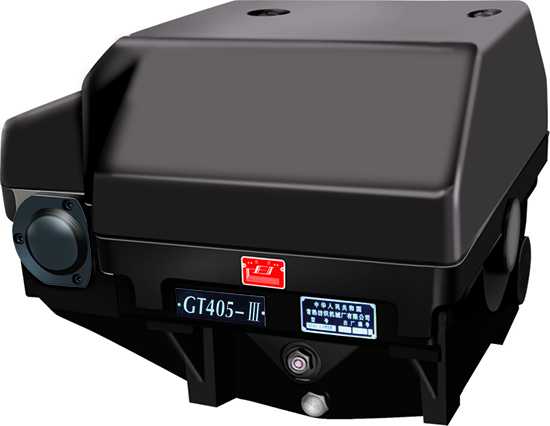

GT405-Ⅲ(GT408)型旋轉式電子多臂裝置

·用途：適用于各類中高檔劍桿織機

·控制：與織機同步之獨立控制裝置

·儲存容量：12800緯

·安裝：下置式（左、右）

·規格：20片

·刀片間距：12mm

Type GT405-Ⅲ(GT408)  High-speed Electronically Controlled Rotary Dobby

·Use: This device is applicable to various kind of middle and high level rapier looms

·Control method: the electronically independent controlling device synchronizing with the looms

·Weft storage: 12800

·Mounting: in low position (left and right side)

·Lifting units: 20

·Pitch: 12mm

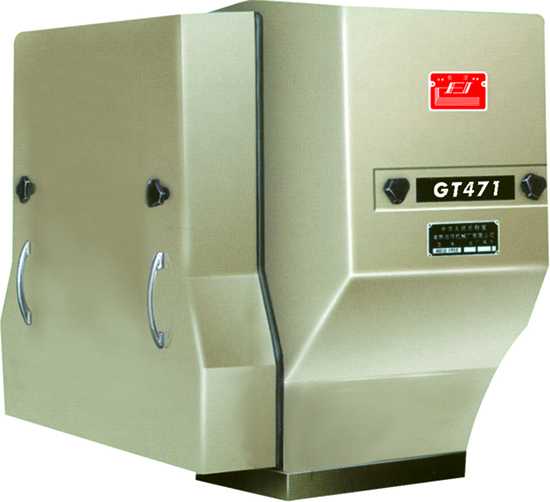

GT471電子多臂裝置

·用途：適用于各類低速普及型和中速劍桿織機

·控制：電子式

·最大循環緯數：12000緯

·安裝：上置式

·規格：20、24片；12mm間隙

·適用織機筘幅：1200～2500mm

Type GT471 Electrnically Control-led Dobby

·Use:Suitable for low and middle-level rapier looms

·Control method :electronic

·Endless wefts:12000

·Mounting:in high position

·Pitch:12mm

·Lifting units:20、24

·Suitable reed width:1200～2500

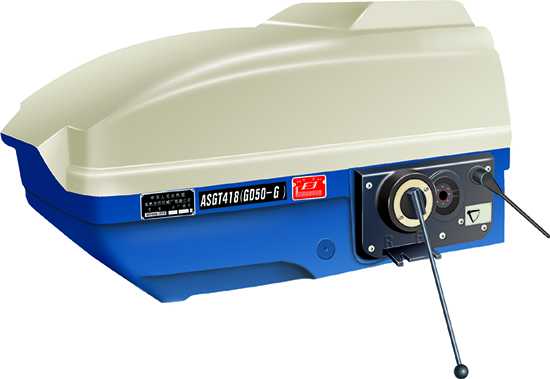

ASGT418 （GD50-G）高速噴射多臂裝置

·用途：適用于各類高性能噴水、噴氣織機

·控制：循環紋釘、紋板式

·安裝：上置式（右手車）

·規格：16片；12mm間距

·適用織機筘幅：1500-3500mm

Type ASGT418(GD50-G) highspeed Jet Dobby

·Use: This device is applicable to various kind of high-performance water-jet and air-jet looms

·Control method: Cycle peg and card

·Mounting: In high position and for right side

·Lifting units: 16

·Pitch: 12mm

·Suitable reed width: 1500-3500 mm

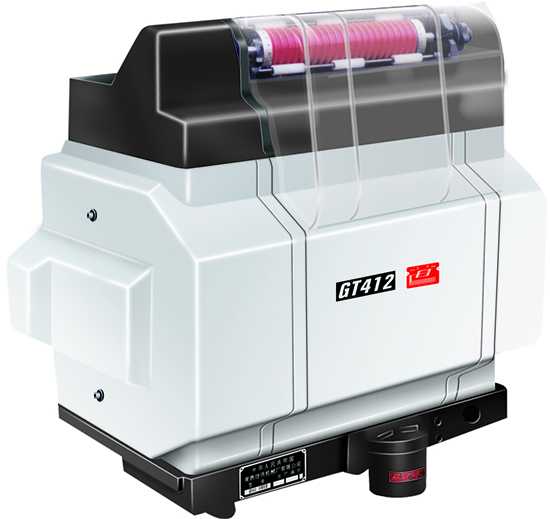

GT412積極式劍桿多臂裝置

·用途：適用于各類高性能中高檔劍桿片梭織機

·控制：連續紋紙式

·安裝：上、下置式（左、右手車）

·規格：12、16、20片；12mm間距

·適用織機筘幅：1650-4600mm

Type GT412 PositIve Rapier Dobby

·Use: This device is applicable to various kind of middle and high level rapier and projectile looms

·Control method: Continuous card paper

·Mounting: In high and low position and for left and right side

·Lifting units: 12,16,20

·Pitch: 12mm

·Suitable reed width: 1650-4600 mm

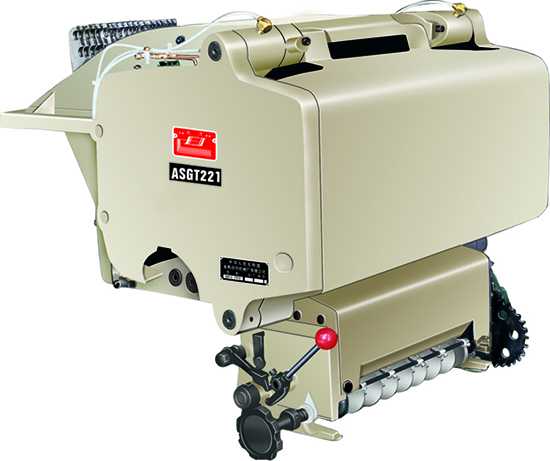

SGT221、ASGT221-Ⅱ消極式劍桿多臂裝置

·用途：適用于各類中低檔、中速劍桿織機

·控制：循環紋紙式

·安裝：上置式（左、右手車）

·規格：20、24片；12mm間距

·適用織機筘幅：1400-2300mm

Type ASGT221、ASGT221-Ⅱ Negative Rapier Dobby

·Use: This device is applicable to various kind of low and middle level,middle speed rapier looms

·Control method: Cycle card paper

·Mounting: In high position and for left and right side·Lifting units: 20、24

·Pitch: 12 mm

·Suitable reed width: 1400-2300 mm

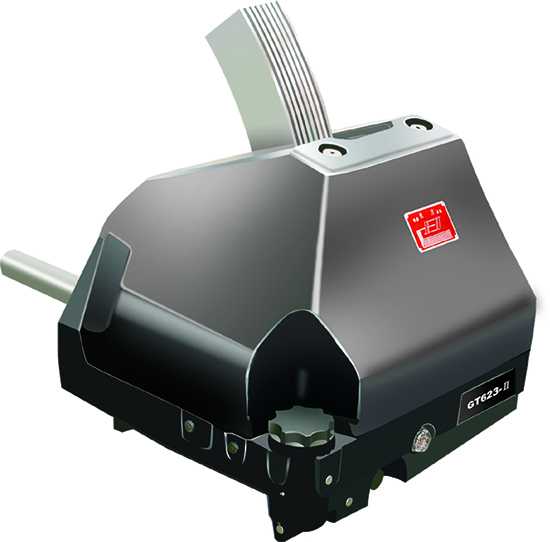

GT623/GT623-Ⅱ高速積極式凸輪開口裝置

·開口型式：積極式共軛凸輪，全清晰梭口

·置式：下置式·綜框片數：4-8片

·綜框間距：12mm

·平綜裝置：GT623型：自動；GT623-Ⅱ型：手動

·適應品種：平紋、斜紋、緞紋等品種

·適用織機：JAT610/710、ZAX/ZAX-E、GA706/708、TT-800等進口、國產系列噴氣織機

·適用織機筘幅：1500～3600mm

TYPE GT623/GT623-ⅡHigh-Speed Positive Cam Motion Device·Type of shedding:positive conjugate cam,full clear open

·Mounting method:in low position

·Cam numbers:4-8

·Pitch:12mm

·Heald reversing motion:GT623:automatic GT623-Ⅱ:mechanical

·Fabrics to be woven:plain、twill and satin

·Suitable looms:foreign and domestic air-jet looms,such as JAT610/710,ZAX/ZAX-E、GA706/708，TT- 800 etc.

·Suitable reed width:1500～3600mm

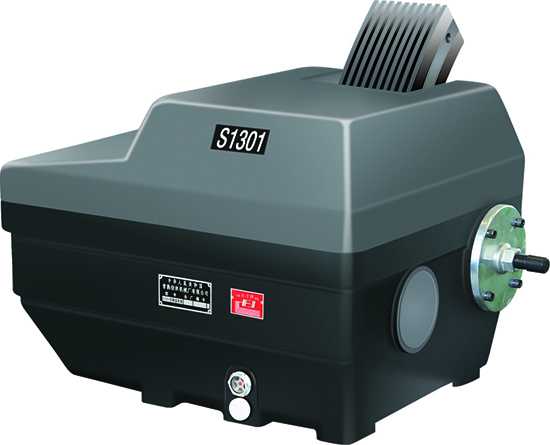

S1301積極式凸輪開口裝置

·開口形式：積極式共軛凸輪，能實現對稱和不對稱的清晰梭口。

·綜框片數：4-10片

·綜框間距12mm

·適應品種：平紋、斜紋、緞紋等品種

·適用織機門幅150-360cm

·適應各類噴氣及劍桿織機

S1301 POSITIVE CAM MOTION DEVICE

·Type: Positive conjugate cam carries out symmetry and asymmetry clear sheds

·Cam numbers: 4-10

·Pitch: 12mm

·Fabrics to be woven: plain, twill and satin

·Suitable reed width: 150-360cm

·Suitable looms: various kinds of air-jet and rapier looms

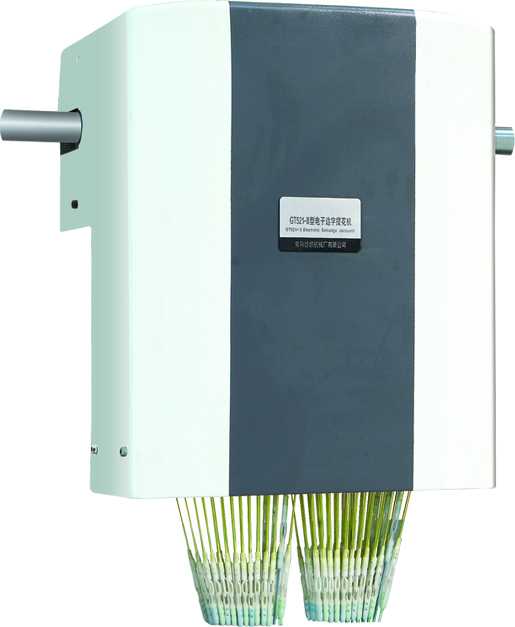

GT521-Ⅱ電子邊字提花裝置

·用途：適用于各類中高檔劍桿、片梭、噴氣及噴水織機，織造棉、毛、絲、麻等原料的各種邊字提花織物。

·控制：電子式

·置式：上置式

·提花針數：72、144針/頭

·最大開口高度：90mm

Type GT521-ⅡElectronic Selvedge Jacquard

·Use: Suitable for various kind of high-level rapier, projectile, air-jet looms and water-jet to weave various selvedge jacquard clothes of cotton, woolen, silk and flax etc.

·Controlling methods: Electroniclly control

·Mounting: In high position

·Lifting needles: 72、144/head

·Sheding height(max): 90mm

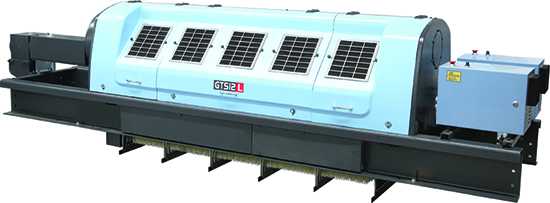

GT512L高速電子提花機

·用途：適用于噴氣、劍桿、片梭等無梭織機，織造各種大提花織物

·控制：電子式、CFJC600型獨立控制箱

·置式：上置式·提花針數：1408、2816、3072、4096、5120、6144、10240針

·開口型式：復動式全清晰梭口

·最大循環緯數：15MB（單個花樣容量）

Type GT512L High- Perf or mance Electronic  Jacquard

·Use:suitable for various kinds of shuttleless  loom (air-jet、rapier and projectile) to weave jacquard f

abrics

·Control method:electronic (indepen  dent CFJC600 controlling device)

·Mounting:in high position

·Lifting needles:1408、2816、3072、4096、5120、6144、10240

·Type of shedding:double lift, full clear open

·Weft storage:15MB (for single pattern)

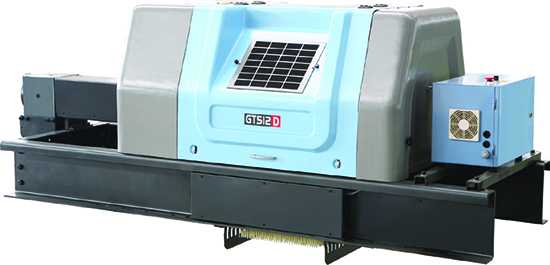

GT512D高速電子提花機

·用途：適用于噴氣、劍桿、片梭等無梭織機，織造各種大提花織物

·控制：電子式，CFJC600型獨立控制箱

·置式：上置式

·提花針數：1408、2816針

·開口型式：復動式全清晰梭口

·最大循環緯數：15MB（單個花樣容量）

Type GT512D High-Performance Electronic  Jacquard

·Use:suitabe for various kind of shuttleless loom (air-jet、rapier and projectile) to weave jac-quard fabrics

·Control method:electronic (independent CFJC600 controlling device synchronizing with the loom)

·Mounting:in high position

·Lifting needles:1408、2816

·Type of shedding:double lift, full clear open

·Weft storage:15MB(for single pattern)

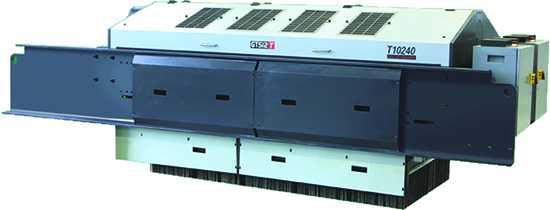

GT512T高速電子提花機

·用途：適用于噴氣、劍桿、片梭等無梭織機，織造各種大提花織物

·控制：電子式

·置式：上置式

·提花針數：6144、8192、10240、12288、14336針

·開口型式：復動式全清晰梭口

TYPE GT512T HIGH-PERFORMANCE ELECTRONIC JACQUARD

·Use: suitable for air-jet、 rapier and projectile looms to weave various jacquard fabrics

·Pattern controlling method: electronic

·Mounting: in high position

·Lifting needles: 6144、8192、10240、12288、14336

·Type of shedding: double lift，full clear open

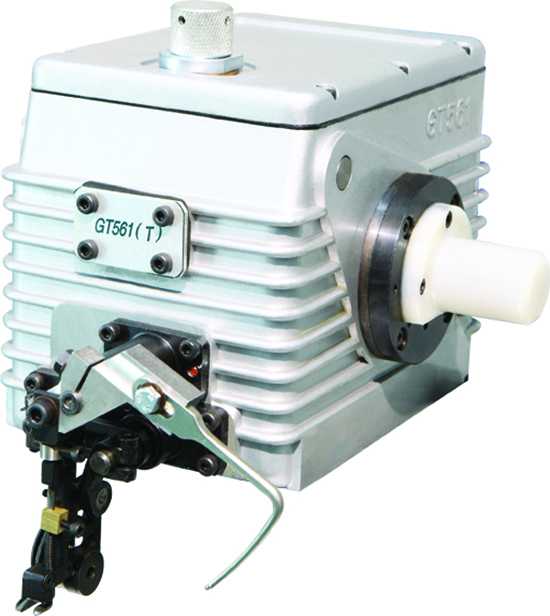

GT561 折入邊裝置

·用途：適用于FAST系列、GTM系列、THAMA系列、GA747系列國產及進口織機

·安裝：上置式（左、中、右）

·折入邊區域寬：12mm

Type GT561 Tucking-in Device

·Use: This device is mounted onto the  FAST series,the GTM series, and the THAMA series and the GA747 series domestic and foreign looms

·Mounting: In high position ( left , middle  and right )

·Width of selvedge zone: 12 mm

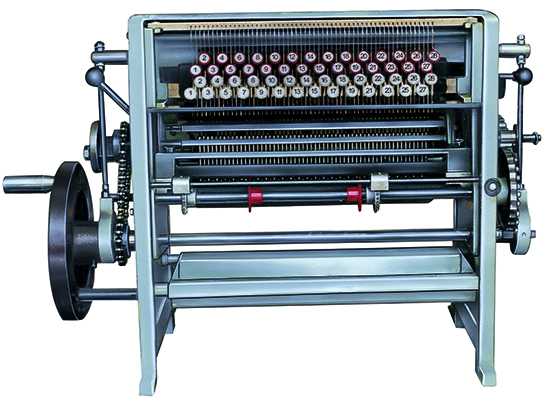

SGU001 紋板沖孔機

·用途：按織造工藝沖制的信號紋紙，適用于ASGT221、ASGT222、GT412等復動式多臂及同類進口產品

·規格：沖頭直徑：Φ4.5 mm

       沖頭縱向間距：3 mm

       沖頭橫向間距：12 mm

·適用棕框頁數：≤28頁

Type SGU001 Card Puncher

·Use: The signal card paper punched in conformity with the weaving technology by this machine can be used on double-lift Dobby such as ASGT221,ASGT222,GT412, and the same imported products

·Diameter of drift : Φ4.5 mm

·Longitudinal distance between drift holes: 3 mm

·Transversal distance between drift holes: 12mm

·Lift units: ≤28

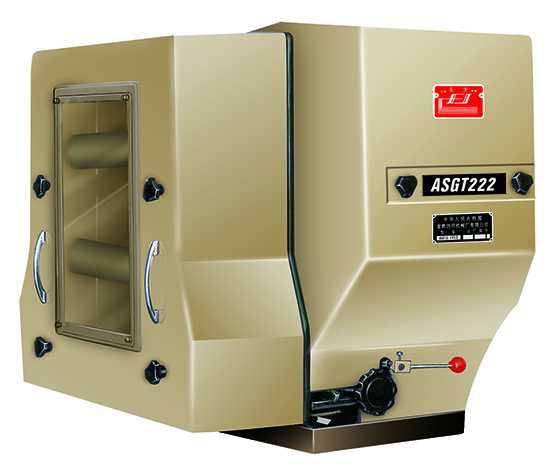

ASGT222、ASGT222-II消極式劍桿多臂裝置

·用途：適用于各類中檔、高檔劍桿織機

·控制：循環紋紙式

·安裝：上置式（左、右手車）

·規格：20：12mm間距

·適用織機筘幅：1200～2300mm

Type ASGT222、ASGT222-II Negative Rapier Dobby

·Use: This device is applicable to various kind of middle level, high speed rapier looms

·Control method: Cycle card paper

·Mounting: In high position and for left and right side

·Lifting units: 20

·Pitch: 12 mm

·Suitable reed width: 1400-2300 mm
