細紗機
發布時間：2012-09-20

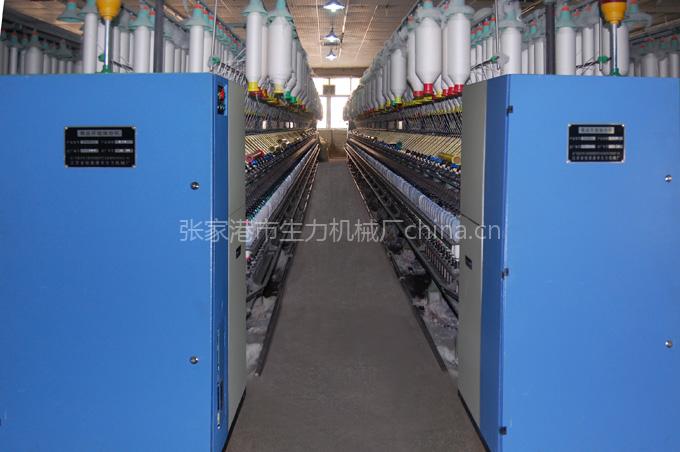

細紗機
FA507型細紗機
FA507型細紗機是我廠生產的主要產品之一，本機可用于棉及棉型化纖的純紡或混紡，調換部分零件后，還可適用65mm以下中長纖維。
Model FA507 Ring Spinning Frame is one of our major products,This machine is used for processing cotton and cotton type synthetic fibers,or their biends Medium length synthetic fibers,up to 65mm can be processed on this machine if a few parts are replaced.
主要特征 MAIN FEATURES
機身窄、左右錠子中心距700mm，空間利用率大。采用先進的電子技術器。自動化程度高，由程序控制器控制紡紗過程中的動作?？蛇m用電動落紗機，落紗無需預拔官紗。
Narrow machine width,and 700mm distance between the centers of the two opposite spindles on either side of the machine can make the space utilized Effectively.Modern electronic counter.Intensive Automation with a program controller to montitor various motions in spinning process.Doffing with an electric Doffer needs no cops pulling in advance.
斷面參數設計合理 OPTIMUM FRAME COROSS SECTION PARAMETERS
本機的斷面參數系根據大量科學實驗，從中選擇最優方案設計的，經過適用證明導紗角范圍、最小氣圈高度參數均有利于改善捻度傳送和控制紡織張力，因此可提高錠速，減少紡紗斷頭。
Optimum parameters of the frame cross-section are determined on the basis of extensive scientific research.Spinning practice proves that the proper range of the angle of thread in clination and the minimum balloon heitht are beneficial to improve twist transmission and thread tension control.As a result FAS03 spinning machines run at higher speed with less end break.
牽伸傳動 DRAFT GEARING
牽伸裝置采用螺旋彈簧加壓的搖架，壓力穩定可靠，操作方便?？膳鋫涓鞣N國產棉方搖架及SKF、PK200系列。Ritte,PS160 P3等國外搖架的牽伸系統?？膳鋫湫滦碗妱勇浼啓C。
The drafting roller weighting by spring pendulum arm reliable and easy to poerate.Drafting system able to be equipped with either various domestic rocker aims for cotton spinning or many forengn pendulum arms of SKF PK200 series,Rieter PS3,ets. Magnetic clearer roll for clearing front roller.Newly-developed electrical doffer for option.
牽伸裝置采用螺旋彈簧加壓的搖架，壓力穩定可靠，操作方便，定期供油。
The whole system of draft gerring inside the cover is of strong construction with the assurance of correct transmission,and oiling to be periodic.
車頭傳動 HEADSTOCK GEARING
采用同步齒形帶傳動，有效的降低噪音。改變紗線支數、捻度及牽伸倍數的變換齒輪數，應用優化設計，且能互換使用，便于管理。傳動系統采用中央潤滑方法，定期供油。車尾面板上集中了所有電器操作原件，便于操作，同時能顯示運轉狀況下的錠速，輸出速度及捻度。
The use of a timing belt at the inpoutend of the driving shaft makes possible alow noiselevel.The tooth-figure of the Change gears for matching different amount twists and draft Ratios are of optimized design so that the change gears are Interchangeable and management.The application of A centrallu brication system to the transmission parts enables Oiling to be periodic.The control panel of the machine and contains the manipulation elecments for all the electric devices,having the convenience of manual operation to display the spindle speed outlet speed and twist.
自動化程度高
HIGH AUTOMATION
1.紡紗過程中，任何時候關車，能自動適應停車。
Whenever the frame is required to stop during spinning the frame can stop automatically at a proper position.
2.如需提前落紗，能使鋼領板自動下降及適應停車。
If doffer is required in advance.the ring rails will automatically wind down and stop at a proper position.
3.滿管后，鋼領板自動下降及自動適應停車。
For full bobbins,the ring rails will down to starting position automatically.
4.開車前能使鋼領板自動復位。
While starting the machine,the ring rails will reset themselves at starting position automatically.
5.落紗前能自動接通落紗電源。
Before the doffing,the doffer electric source can be connected cutomatically.
6.開車后低速自動切換高速。
After start of machine,the speed is changed from low to high automatically.
主要規格與技術參數： 錠數：504；492；480；456；420；408；396；384；96
錠距(mm)：70
錠速(rpm)：10000～17000
鋼領直徑(mm):38;42;45
筒管長度(mm)：180；190；205；230
適紡號數(tex)：6～96
牽伸倍數：10～50
牽伸型式：三羅拉，雙皮圈，搖架加壓
羅拉直徑(mm)：前、中、后均25
粗紗卷裝(mm)：吊錠Φ135×320
(max)Φ152×406
粗紗架：托錠支承或單層四、六列吊錠支承
電動機：
主電動機 380伏，15千瓦(456錠及以下)
380伏，17千瓦(456錠以上)
吸風電動機 380伏，1.5千瓦(420錠及以下)
380伏，2.2千瓦(420錠以上)
鋼領板升降電動機：380伏，180瓦
全機長度(mm):L=1890+(N/2-1)×70,(N-錠數)
全機寬度(mm):1000
全機高度(mm):2050
MAIN SPECIFICATIONS AND TECHNICAL DATA:
No.of spindles: 504；492；480；456；420；408；396；384；96
Spindles guage:70mm
Spindles speed: 10000～17000rpm
Ring dia: 38;42;45mm
Tube length: 180；190；205；230mm
Counts:6～96 tex
Draft:10～50
Draft system:3-roller,double apron,pendulum weighting arm
Roving package:front,middle,back all 25mm
Roving package: Φ135×320
suspension bobbin(max)Φ152×406mm
Creel:roving bobbins rested on the holders or single tier.
4.6 row with suspension bobbins
Motors:
Main motor:380V,15Kw(for spindle no.≤456)
380V,17Kw(for spindle no.>456)
80V,1.5Kw(for spindle no.≤420)
380V,2.2Kw(for spindle no.>420)
Ring rail lifting motor:380V,180W
Machine length:L=1890+(N/2-1)×70mm(N:No.of spindles)
Machine width:1000mm
Machine height:2050mm
