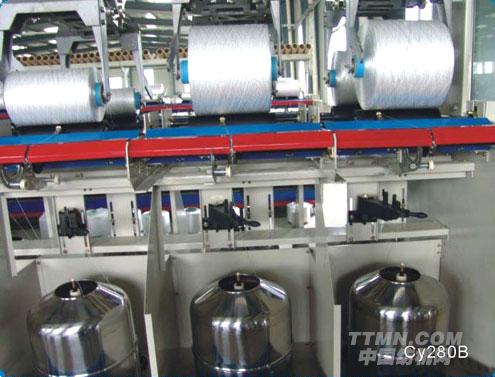

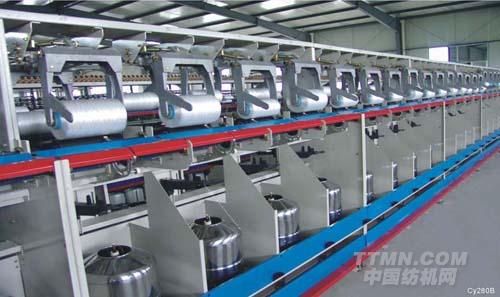

CY280B大卷裝倍捻機

適用范圍
工業縫紉線、輪胎簾子線、傳動帶粘合線，漁網用線或箱包線布料、背帶用線等1000~12000D不同規格紗線的加捻。
Applied range
It is applied to twist various yarns, including: industrial cusir, tyre cord, belt adherent yarn, fishing net yarn, bag cloth and belt yarn, etc.
 特點

1. 采用了電腦自動導絲成形系統,導絲速度不受限制;
2. 可以一次性加工6~8KG和6~13KG的筒子,錠子卷裝量大,且提高了生產效益;
3. 纖維的生產范圍廣,最粗纖維可以做到12000D,最低捻度可以生產20捻/米;
4. 腳踏式制動系統，操作更簡單，同時延長龍帶和錠子壽命；
5. 高品質錠子在高速運轉下的持久穩定性；
6. 二級傳動結構,使受力更合理,變頻控制電機,可以方便調整所需轉速.

Features

1. It adopts computer automatic Godet-forming system, and the speed of yarn guiding is unlimited;
2. It can process 6~8kg and 6~13kg bobbin by one time, the package volume of spindles is filled out and the production efficiency is highly improved;
3. The range of production is wide, the biggest fiber may reach 12000d, and the minimum twist may reach 20t/m;
4. Pedal-braking system is more easy to operate, and the longevity of apron belt and spindle will prolong at the same time;
5. The perdurable stability of high quality spindle at the high-speed operation;
6. Two-step drive device make the force-enduring reasonable, and the frequency converter control the motor, it is easier to adjust the speed of spindle.


技術參數  Technical Paramete
