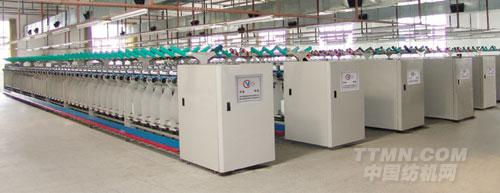

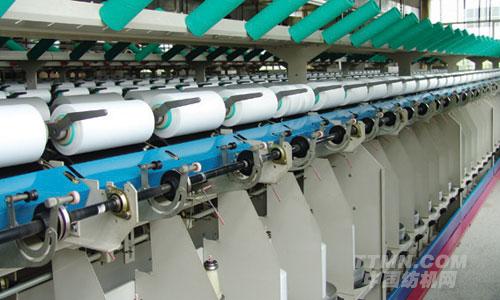

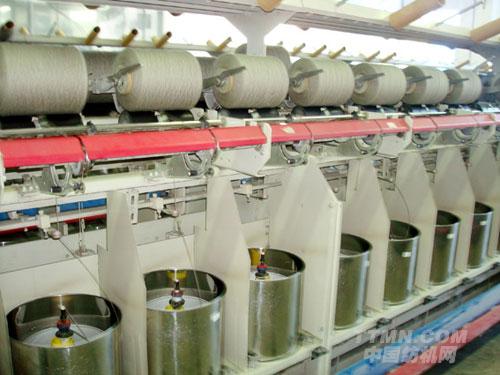

CY250A大卷裝倍捻機

化纖加捻設備，實行一轉兩捻，效率比傳統捻絲機成倍提高，卷裝容量增大，幾萬米無接頭，減少了纖維由于分筒工序所造成的磨損，加捻質量大幅度提高。
The fiber two-for one twister achieves one rotation to two twists. Its efficiency is much higher than traditional throwing machine in times, and the capacity of package increased. No piecing in tens of thousands of meters helps to decrease the abrasion of fiber which caused by the process of apart bobbin, and the twisting quality is highly improved.

適用范圍
DTY、POY、HOY、FDY、粘膠長絲等45~6000D各種纖維的單股或多股加捻。
Applied Range
45~6000D fibers, such as DTY, POY, HOY, FDY, viscose filament yarns.

特點

1. 高品質的錠子在高速運轉下的持久穩定性；
2. 操作方便、傳動合理、結構緊湊、外形美觀；
3. 適合加工單股及多股纖維的大卷裝紗筒；
4. 可以省去其他倍捻機需分成小筒紗加工的麻煩，減少工序，提高效率及質量；
5. 腳踏式制動系統，操作更簡單，同時延長龍帶和錠子壽命；
6. 卷繞結束或斷頭時，筒子架自動抬起，防止紗線磨損；
7. 卷繞張力可以在超喂羅拉上任意調節。

Features

1. The perdurable stability of high quality spindle at the high-speed operation;
2. Convenient operation, reasonable transmission, compact construction and attractive appearance;
3. Suitable for single or multi-fiber yarn of large package yarn cones;
4. It can possibly omit troubles that other two-for-one twisters need to divide into small yarn cones to produce, the processes can be decreased, the efficiency and quality can be improved;
5. Pedal-braking system is more easy to operate, and the longevity of apron belt and spindle will prolong at the same time;
6. Bobbin creel can raise automatically to avoid the abrasion of yarns when winding completed or yarn broken;
7. The winding tension can be adjusted at ease in pre-take-up roller.

技術參數 Technical Parameter
