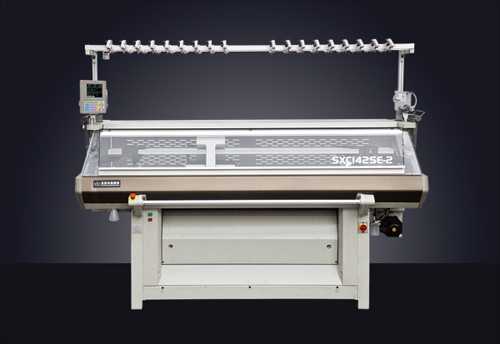

盛星電腦橫機 SXC142SE-2
發布時間：2013-09-09
盛星電腦橫機 SXC142SE-2
GAUGE 3.5.7(multi-gauge)、5、7、8、10、12、14 G
Knitting Width Variable stroke Max.56Inch (142cm)
Knitting speed Max 1.2m/sec.
Stitch density Controlled by stepping motor, 24 section stitch selectable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Racking Motor-driven racking mechanism Max 2 inch,1/2 and 1/4 pitch also available from any position
Knitting system Double Knitsystem
Transfer The transfer is compose designed, single cam system an other cam system for knitting which will achieve to high production efficiency knit.
Sinker system Spring-type moveable full-sinker system. Fixed sinker system.
Needle selection Full jacquard selection via special solenoid actuators.
Setup device Takedown comb with special setup needles.
Takedown device Main roller. Changeable 99 levels, automatically adjustable on each level. Automatic opening and closing.
Yarn cutter Single-unit system includes 1 yarn cutter and 2 yarn grippers. Left and right side standard.
Side tensions 8 on each side
Yarn carriers 16 normal carriers
Top tensions 18 tension devices.
Stop motion Yarn break, large knot, wraparound check, shock detection, piece count, over-troque, program error,etc.
Drive system Belt drive. AC servo motor. No lubrication necessary.
Safety devices Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Stop button. Power supply disconnecting device.
Ultra-low speed "crawl" setting. Indicator lamps (see below).
Operation lamp Green/normal operation. Yellow/normal stop. Red/abnormail stop.
