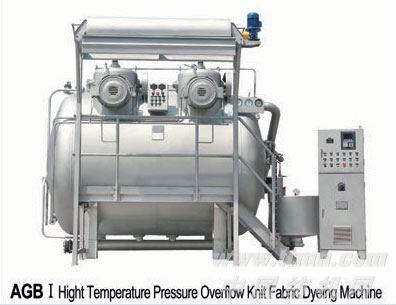

AGBⅠ高溫高壓溢流染色機
發布時間：2007-02-12
產品信息
型號： AGBⅠ
規格： Standdard features and part:
The body shell is made of anticorrosive stainless steel 316,316L
Fabric lifting system matching inverter with variable speed range 50-360m/min
Dual-grade circumference nozzle
Fabric tangling release device
Liquid displace and collecting system
Overflow rinsing system
Mechanical sealed centrifugal pump
Main pump adjusted-speed inverter or overflow-adjusted valves(optional)
Pneumatic control valves for heating ,cooling,filling,draining and overflow rinsing.
High-efficient heat exchanger
Internal fpray cleaning system
Level indicator with level sensor
Convenient feeding system
Main electric controlling box with advanced micro-processor.
Service platform
Layout plaiter for unloading
Optional extras:
Optional Accessory
Seam detection device
Equipped quantitative feeding system of
Feeding pump
品牌：
產地：
產品說明： Characteristics
Fast cycling system to guarantee perfect dying effect .The maximum
speed of textile(360m/min)and high efficient cloth-liquid separating system are good in realizing double circulation of textile and dyeing liquid.At the same time ,make even dying liquid permeate textile with high frequency and reach even dyeing effect.
Double nozzles transit the cloth in overflowing model ,reach favorable dyeing effect.
Unique design of nozzle in angle works in the cloth-lifting rollers to realize the overflowing cloth movement.In addition,the textile floats in the nozzle naturally to avoid cloth fluff.
Unique cloth grooves,powerful loading capacity and lower water ratio.
Curve-shaped cloth groove and pipe-shaped PTFE bottom can not only make the cloth run smoothly in large quantity but also realize the second cloth-liquid separation,so dyeing liquid flows back efficiently and attains lower water ratio.
備注：
