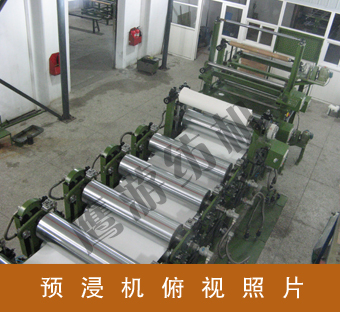

預浸機
發布時間：2011-08-29
我公司生產的預浸設備為二步法生產熱熔預浸復合材料設備，主要包括熱熔涂膠機和熱熔預浸機。生產時，首先在涂膠機上漿樹脂涂于離型紙生產出膠膜，然后把膠膜送到預浸機上，使膠膜與增強材料（碳纖維、玻璃纖維、芳綸纖維）復合，再經壓輥加熱熔化、整平，將膠均勻地浸漬到增強材料里而生產出熱熔預浸復合材料品質高，生產效率高，因此運用廣泛。
This kind of equipment is suitable for produce hot-melt prepreg composite materials by two-step. It includes hot-melt sizing machine and prepreg machine. During employ, first melt the epoxy resin and coat it on the special paper with sizing machine, then composite the paper with strengthen material（carbon fiber, glass fiber, aramid fiber）by prepreg machine, heat and smooth it through the contact roller, make the glue evenly penetrate into the strengthen material, it has high quality and production, with extensive use.

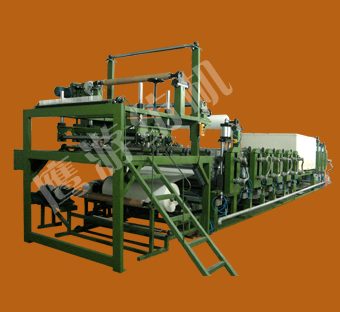

熱熔預浸機
一、用途：適用于纖維(3K,6K,12K碳纖維、玻璃纖維、芳綸纖維)與涂膠機上生產出來的熱熔環氧樹脂膠膜進行復合,壓延及卷取等,并在其表面覆蓋一層聚乙烯或壓花薄膜,以生產各種預浸料。
二、主要技術參數
1、基材寬度：1000mm
2、使用樹脂：熱熔環氧樹脂
3、增強材料種類
纖維：(3K,6K,12K碳纖維、玻璃纖維、芳綸纖維)
4、紗筒數量：252支
5、最高工作車速：10m/min
6、退卷筒心直徑 內徑：φ76min 外徑：φ100min
7、退卷最大直徑：φ600min
8、成品收卷筒心直徑 內徑：φ300mm
三、主要結構特點
熱預浸機主要由紗架、導紗架、集束展平、收放卷裝置、壓延貼合裝置、制冷保溫箱、牽引復合裝置、熱油加熱循環裝置、壓縮空氣系統及電氣傳動控制系統等部分組成。
hot-melt prepreg machine
2.1 use: suitable for all kinds of prepreg material by compositing carbon fiber, glass fiber, aramid fiber(3k, 6k, 12k) with hot- melt epoxy resin from sizing machine, rolling and winding, then cover the surface with a piece of polyethylene film or printing film.
2.2 main parameter:
Material width: 1000mm
Resin: hot- melt epoxy resin
Strengthen material: carbon fiber, glass fiber, aramid fiber (3k, 6k, 12k)
Tube head: 252 pcs
Max. Working speed: 10m/min
Back winding diameter: inner ￠76mm outer ￠100mm
Max. Back winding diameter: ￠600mm
Finished product winding diameter: ￠300mm
1.4 main features:
Hot- melt prepreg machine is made of yarn frame, yarn guide frame, bunch paving unit, rolling part and winding device, driving unit, oil heater, refrigeration box, air pression and electrical controlling systems, etc.
